Choosing the right SSD for your laptop or ultrabook can be a bit like finding a needle in a haystack, especially when you need a specific, compact form factor. That’s where the best 42mm M.2 SSD comes into play. These tiny powerhouses, also known as M.2 2242 SSDs, are designed to fit into smaller slots found in mini PCs, older laptops, and even some handheld gaming devices. Don’t let their size fool you; these solid-state drives can deliver a serious boost in performance, making your system snappier and more responsive.
In this guide, we’ll dive deep into some of the top-performing 42mm M.2 SSDs on the market, helping you make an informed decision for your next upgrade. Whether you’re chasing blazing-fast speeds or simply need more reliable storage, we’ve got you covered.
Why a 42mm M.2 SSD?
The “2242” in M.2 2242 refers to its dimensions: 22mm wide and 42mm long. This compact size is crucial for devices with limited internal space. While larger M.2 2280 drives are more common, many specialized or older machines specifically require this shorter form factor. Upgrading to a modern 42mm M.2 SSD can dramatically improve boot times, application loading, and overall system responsiveness compared to traditional hard drives or older, slower SSDs.
Key Factors to Consider When Buying
Before you pick out the perfect drive, here are a few things to keep in mind:
- NVMe vs. SATA: This is crucial! NVMe (Non-Volatile Memory Express) SSDs use the PCIe interface and offer significantly faster speeds than SATA (Serial ATA) SSDs. Most modern compact devices will support NVMe, but older ones might only support SATA M.2 2242. Always check your device’s specifications.
- PCIe Generation: For NVMe drives, check if your system supports PCIe Gen 3 or Gen 4. Gen 4 offers much higher theoretical speeds, but you’ll only benefit if your device supports it. Gen 3 drives are still incredibly fast for most everyday tasks.
- Capacity: How much storage do you need? 256GB, 512GB, 1TB, or even 2TB options are available. Consider your files, applications, and future needs.
- Read/Write Speeds: Look at the sequential read and write speeds (MB/s) and random read/write (IOPS). Higher numbers mean faster data transfer.
- Compatibility: Double-check your device’s manual or manufacturer’s website to confirm it supports the M.2 2242 form factor and the specific interface (NVMe/PCIe or SATA).
- Reliability & Warranty: A good warranty and high TBW (Terabytes Written) rating indicate a durable drive.
Now, let’s dive into our top picks for the best 42mm M.2 SSD!

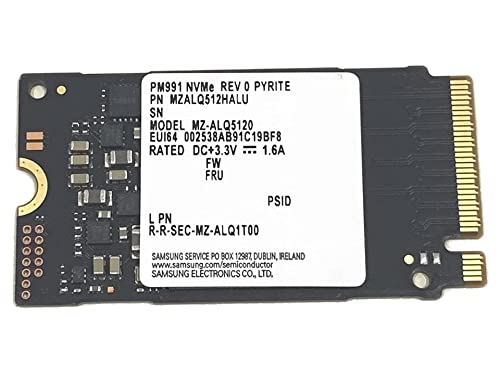

1. SAMSUNG 512GB M.2 2242 42mm PM991 NVMe PCIe Gen 4
This Samsung PM991 is a fantastic choice if you’re looking for a solid performance boost in a compact size, especially if your system can leverage PCIe Gen 4 speeds. It’s built to deliver consistent high performance, making it an excellent upgrade for compatible laptops and desktops that need that extra edge for gaming or demanding applications. While it’s a PCIe Gen 4 drive, it’s also backward compatible with Gen 3 systems, offering flexibility.
-
Key Features:
- Dimension: 22mm x 42mm x 2.38mm (M.2 2242 form factor)
- Interface: NVMe PCIe Gen 4 x 4 (backward compatible with Gen 3 x 4)
- Key Type: M Key
- Sequential Read/Write: Up to 3100 MB/s / 2000 MB/s
- Random Read/Write: Up to 380K IOPS / 330K IOPS
- Features Full Power Mode for consistent performance
-
Pros:
- Good performance for a 2242 drive, leveraging PCIe Gen 4 where supported.
- Samsung’s renowned reliability and quality.
- Compact size fits many ultrabooks and mini PCs.
- Full Power Mode helps maintain high speeds.
-
Cons:
- Only 512GB capacity might be limiting for some users.
- Specific compatibility notes (e.g., older Lenovo ThinkPad P-series might only support SATA).
- Speeds are decent for Gen 4, but not top-tier compared to larger Gen 4 NVMe drives.
-
User Impressions: Users frequently praise this drive for its noticeable speed improvement in compatible devices, transforming sluggish systems into much snappier machines. It’s often highlighted as a reliable and effective upgrade.
2. SN740 Black 1TB M.2 2242 42mm PCIe Gen 4 x4
The SN740 Black 1TB is a true game-changer for compact devices, offering a substantial 1TB capacity coupled with blistering PCIe Gen 4 speeds. This drive is ideal for power users who need ample storage and top-tier performance in their thin and light laptops, such as specific Lenovo ThinkPad and Ideapad models mentioned in its compatibility list. It’s perfect for heavy graphics workloads, gaming, or just making your entire system incredibly responsive.
-
Key Features:
- Dimension: 22mm x 42mm x 2.38mm (M.2 2242 form factor)
- Interface: NVMe PCIe Gen 4 x 4 (backward compatible with Gen 3 x 4)
- Key Type: M Key
- Sequential Read/Write: Up to 5200 MB/s / 4700 MB/s
- Random Read/Write: Up to 380K IOPS / 330K IOPS
- Features Full Power Mode for consistent performance
- Capacity: 1TB
-
Pros:
- Exceptional PCIe Gen 4 speeds, among the fastest for a 2242 form factor.
- Generous 1TB capacity in a compact size.
- Excellent choice for gaming and intensive applications.
- Specific compatibility for popular modern thin and light laptops.
-
Cons:
- Premium pricing due to high performance and capacity in a niche form factor.
- Requires a PCIe Gen 4 compatible slot to achieve maximum speeds.
-
User Impressions: Customers are thrilled with the SN740 Black’s performance, often reporting a dramatic improvement in their system’s overall speed and responsiveness. The combination of high capacity and top-tier speeds in such a small package makes it a favorite for compatible modern devices.
3. INLAND M.2 2242 2TB SSD NVMe PCIe Gen 3×4 Internal
If maximum capacity is your priority for a compact device, the INLAND M.2 2242 2TB SSD is a standout. Packing a massive 2 terabytes of storage into the tiny 2242 form factor, this drive is an absolute dream for expanding storage in devices like the Legion Go, ultrabooks, or any laptop with a compatible PCIe Gen 3 slot. While it’s a Gen 3 drive, its speeds are more than sufficient for most users, and its impressive endurance rating and long warranty offer great peace of mind.
-
Key Features:
- Dimension: 22mm x 42mm x 3.5mm (M.2 2242 form factor)
- Interface: NVMe PCIe Gen 3 x 4
- Key Type: M Key
- Capacity: 2000GB (2TB)
- Sequential Read/Write: Up to 2400 MB/s / 2100 MB/s
- Random Read/Write: Up to 250K IOPS / 400K IOPS
- 3D TLC NAND with 1600 TBW (Terabytes Written)
- DRAM-less, Low Power Consumption with APST/ASPM/L1.2 support
- Supports S.M.A.R.T., TRIM, Bad Block Management, Wear-Leveling
- 6-year warranty
-
Pros:
- Unmatched 2TB capacity for the 2242 form factor.
- Excellent endurance rating (TBW) for long-term reliability.
- Impressive 6-year warranty.
- Good PCIe Gen 3 speeds for everyday use and large file transfers.
- Low power consumption, beneficial for battery life.
-
Cons:
- PCIe Gen 3 speeds are slower than Gen 4 options.
- DRAM-less design might slightly impact performance during extremely heavy, sustained writes.
-
User Impressions: Users needing serious storage in a small footprint rave about this INLAND SSD. It’s frequently recommended for handheld gaming PCs and specific ultrabooks where no other 2TB option exists in this size. Its reliability and value are highly praised.
4. Transcend 1TB M.2 2242 SATA III SSD, Up to 550MB/s
Not all devices support NVMe, and for those older laptops or mini PCs that strictly require a SATA M.2 2242 drive, the Transcend 1TB SSD is an absolute lifesaver. This drive provides a generous 1TB of storage while adhering to the SATA III interface, offering speeds far superior to traditional hard drives. It’s packed with features designed to enhance performance, ensure data integrity, and even prolong your device’s battery life, making it an excellent choice for breathing new life into legacy systems.
-
Key Features:
- Dimension: M.2 2242 form factor
- Interface: SATA III
- Capacity: 1TB
- Sequential Read/Write: Up to 550 MB/s read
- Built-in SLC caching technology
- RAID engine and LDPC coding for error correction
- DevSleep mode for power saving
- Transcend SSD Scope software for drive health and optimization
- Three-year Limited Warranty
-
Pros:
- One of the few high-capacity (1TB) SATA M.2 2242 options available.
- Ideal for upgrading older systems that lack NVMe support.
- Features like SLC caching, RAID engine, and LDPC coding enhance performance and data reliability.
- DevSleep extends battery life.
- Useful Transcend SSD Scope software.
-
Cons:
- SATA speeds are significantly slower than NVMe drives.
- Not suitable for modern devices that demand high-speed NVMe performance.
-
User Impressions: This Transcend SSD is a go-to for users with older ThinkPads, Dell Latitude models, or specific embedded systems that can only take SATA 2242. They appreciate the noticeable speed upgrade from an HDD and the peace of mind offered by Transcend’s data integrity features and software.
5. Samsung SSD 256GB PM991 M.2 2242 42mm PCIe 3.0 x4
For users seeking a reliable, entry-level NVMe upgrade in the compact 2242 form factor, the Samsung 256GB PM991 PCIe 3.0 is a fantastic option. Leveraging Samsung’s trusted technology, this drive offers a significant performance boost over SATA drives and even older NVMe models, all while maintaining excellent power efficiency. It’s perfect for a primary boot drive in a compatible system, or as fast, compact secondary storage.
-
Key Features:
- Dimension: 22mm x 42mm (M.2 2242 form factor)
- Interface: NVMe PCIe 3.0 x 4
- Key Type: M Key
- Capacity: 256GB
- Sequential Read/Write: Approximately 2000 MB/s / 1200 MB/s (typical for 256GB PCIe 3.0 PM991)
- Compact and power-efficient design.
-
Pros:
- Reliable Samsung brand quality.
- Good performance for a PCIe Gen 3 drive.
- Affordable entry point for NVMe speeds.
- Compact 2242 form factor.
-
Cons:
- Lower capacity (256GB) might not be enough for some users.
- PCIe Gen 3 speeds are not as fast as Gen 4 options.
-
User Impressions: Customers frequently use this drive to upgrade devices like specific Lenovo models or other compact systems where space and budget are concerns. They consistently report a noticeable speed improvement for everyday tasks, highlighting it as a solid and reliable choice for a basic system refresh.
Conclusion
Upgrading to the right best 42mm M.2 SSD can truly transform your compact device, whether it’s an ultrabook, mini PC, or handheld gaming system. From the blazing speeds of the SN740 Black to the massive capacity of the INLAND 2TB, and the reliable versatility of the Samsung PM991 drives, there’s a perfect fit for every need. Remember to always double-check your device’s compatibility before making a purchase. Happy upgrading!
FAQ Section
Q1: What does “M.2 2242” mean?
A1: “M.2” refers to the form factor for internal solid-state drives. The numbers “2242” indicate its physical dimensions: 22 millimeters in width and 42 millimeters in length. This is a very compact size, designed for devices with limited space.
Q2: Can I put an NVMe 2242 SSD in a laptop that only supports SATA 2242?
A2: No, unfortunately, you cannot. NVMe and SATA M.2 slots are physically compatible (they often share the same M-key slot), but their communication protocols are entirely different. An NVMe drive will not work in a SATA-only slot, and vice versa. Always check your device’s specifications carefully.
Q3: How much faster is an NVMe 2242 SSD compared to a SATA 2242 SSD?
A3: NVMe SSDs, especially those using PCIe Gen 4, can be significantly faster than SATA SSDs. While SATA III maxes out around 550 MB/s, NVMe PCIe Gen 3 drives can reach speeds of 2000-3500 MB/s, and PCIe Gen 4 drives can hit 5000-7000 MB/s or even more. This translates to much quicker boot times, faster application loading, and quicker file transfers.
Q4: Will a 42mm M.2 SSD improve my laptop’s battery life?
A4: Yes, generally, it can. SSDs, including the 42mm M.2 form factor, consume less power than traditional spinning hard drives. Also, many modern SSDs feature power-saving modes like DevSleep, which intelligently shut down the SATA or PCIe interface when not in use, further prolonging battery life.
Q5: Is it difficult to install a 42mm M.2 SSD?
A5: For most users with basic technical skills, it’s a straightforward process. It usually involves opening your laptop or device, locating the M.2 slot, inserting the SSD, and securing it with a small screw. You might need to transfer your operating system or install a fresh one. Always refer to your device’s service manual or a reliable online tutorial for specific instructions.
Q6: What is “TBW” and why is it important for an SSD?
A6: TBW stands for “Terabytes Written.” It’s a measure of an SSD’s endurance, indicating how much data can be written to the drive over its lifetime before it might start to experience wear-related issues. A higher TBW rating means the drive is designed to last longer under heavy write workloads, providing peace of mind for the user.
Q7: Can I use a 42mm M.2 SSD as an external drive?
A7: Yes, you can! You would need an M.2 2242 external enclosure that supports either NVMe or SATA (depending on your SSD’s interface). These enclosures typically connect via USB-C and allow you to use your compact SSD as a high-speed portable storage device.
